COILED SPRING PINS METRIC

ASME B18.8.3M
Ref. Only; ISO 8748 Heavy Duty
ISO 8750 Standard Duly
ISO 8751 Light Duty

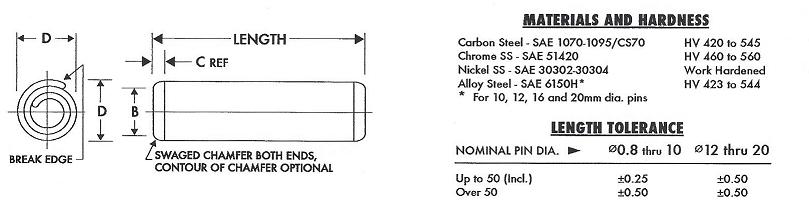

Diagram of Coiled Spring Pin from Fastar Fasteners

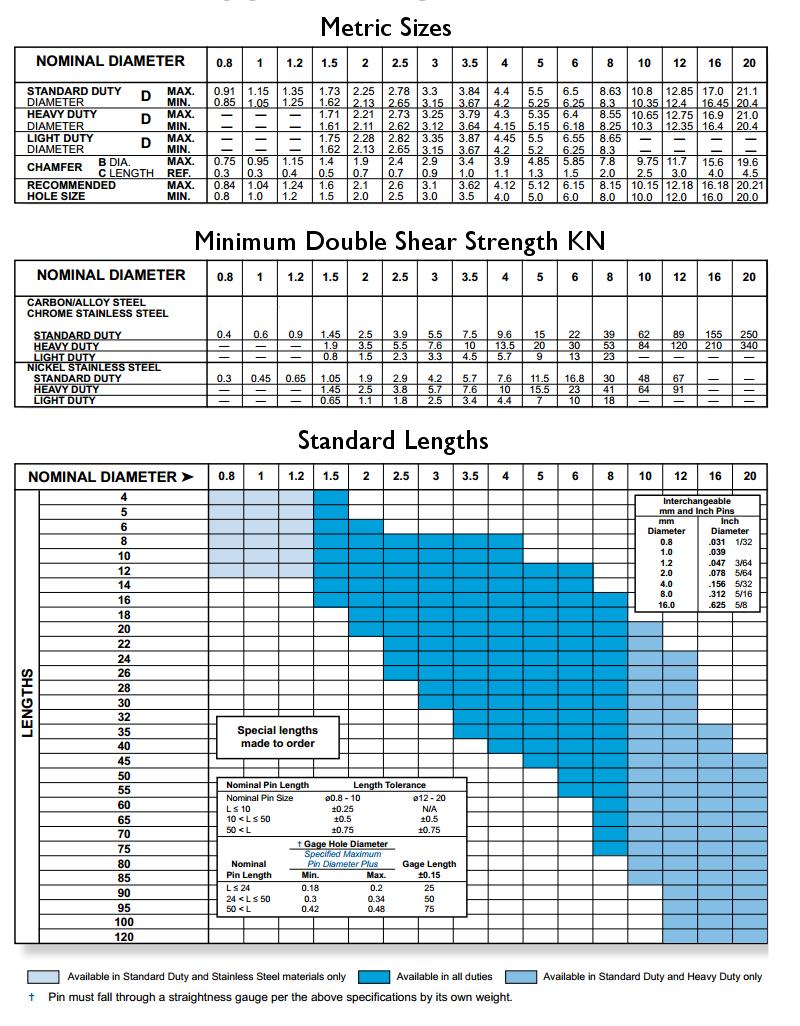

Coiled P:in SIzed from from Fastar Fasteners
NOTES:
  • Light duty SAE 1070-1095 pins are not produced in diameters smaller than 1.5mm
  • 0.8 - 1.2mm diameter pins are only available in Standard Duty and from SAE 30302/30304 and 51240 materials
  • The standard finish for stainless steel pins is plain, oiled.  Passivated pins are available at an additional cost.

FEATURES
 Superior load distribution                                Close Length Tolerance
 Accommodates wide hole tolerances                  Excellent for automatic feeding
 Absorbs shock and vibration                               Reusable - Recyclable
               Equal stress distribution                      3 Duties, Broaden applications
                                   Clean-Cut Ends               Manufactured to QS and ISO quality standards
