Coiled Spring Pins

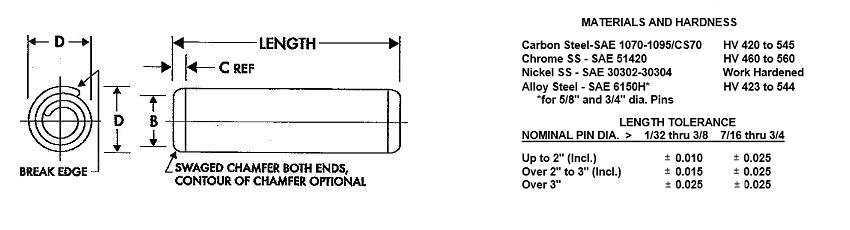

Coiled Spring Pins - Standard Inch Sizes

ASME B18.8.2



NOTES

• Light duty SAE 1070-1095 pins are not produced in diameters smaller than .094
• .031 - .052 diameter pins are only available in Standard Duty and from SAE 30302/30304 and 51240 materials
• The standard finish for stainless steel pins is plain, oiled.  Passivated pins are available at an additional cost.

FEATURES

Superior load distribution                               Close Length Tolerance

Accommodates wide hole tolerances                 Excellent for automatic feeding

Absorbs shock and vibration                          Reusable - Recyclable

           Equal stress distribution                         3 Duties, Broaden applications

                                    Clean-Cut Ends                      Manufactured to QS and ISO quality standards
