| Technical Bulletin |
|

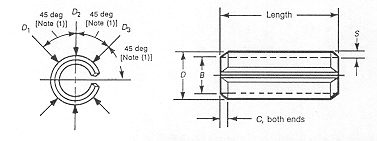

Slotted
Spring Pins - Standard
Inch Sizes
ASME B18.8.2
|
LENGTH TOLERANCES |
 |
0.187 TO 1.000
1.001 TO 2.000
2.001 TO 3.000
3.001 TO 4.000 |
+
- .015
+ - .020
+ - .025
+ - .030 |
|

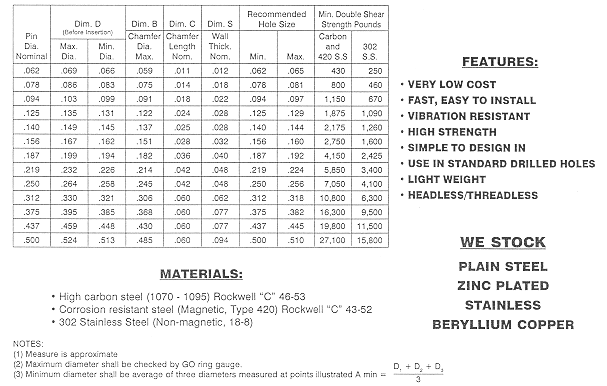

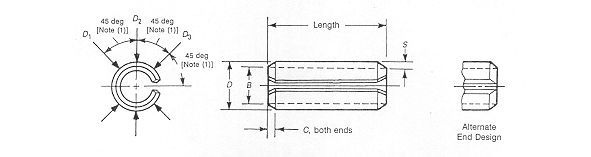

SLOTTED SPRING PIN
SPECIFICATIONS |
|
|
|
|
|

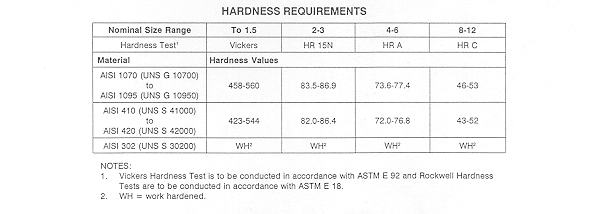

HELPFUL INFORMATION

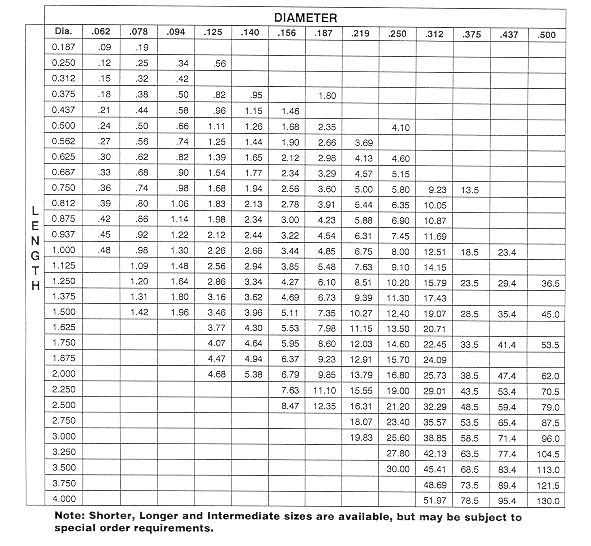

Weight chart - approximate lbs. / 1000 pieces
|
|
|
We Can Supply
 |
Metric Sizes |
|
Spring pin kits |
|
Poly bag packaging |
|
Special sizes |
|
Special finishes |
|
|
|
| Technical Bulletin |
|

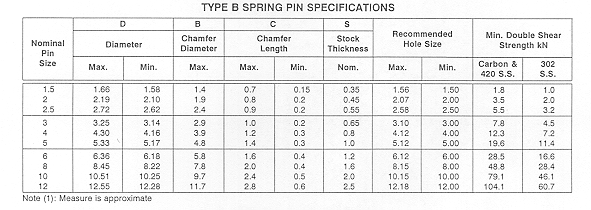

Slotted Spring Pins -
ASME Metric
ASME B18.8.4M-1994
|
|
|
|
|
|
 |
|
|
| Technical Bulletin |
|

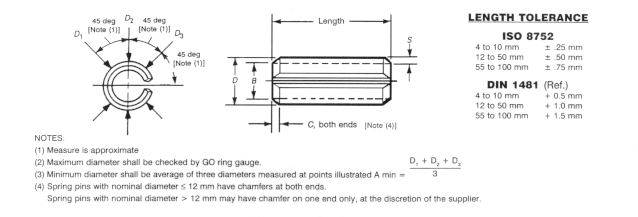

Slotted Spring Pins -
Metric Specifications
ISO 8752 (replaces DIN 1481)
|
|
|
|
|

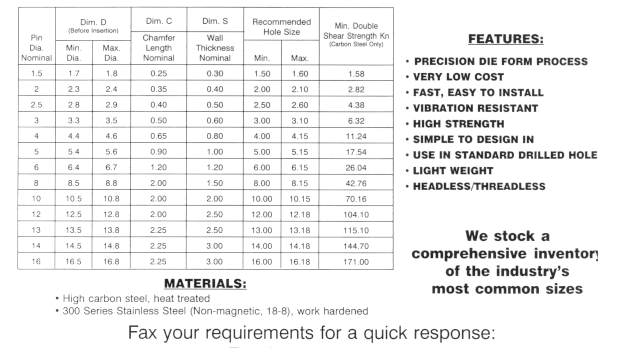

SLOTTED SPRING PIN
SPECIFICATIONS |
|
|
|
HELPFUL INFORMATION

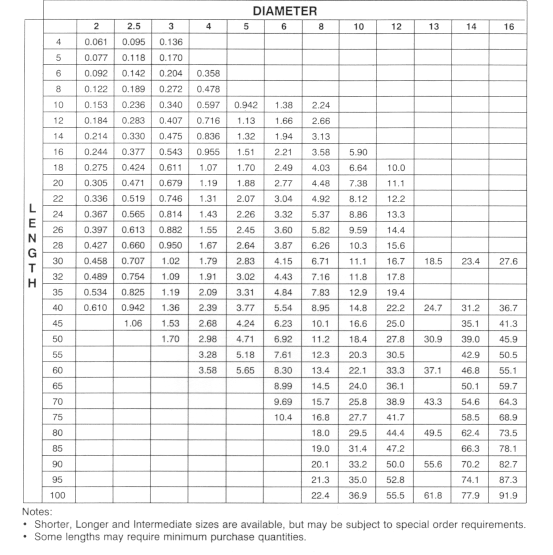

Weight chart - approximate KG/1000 pieces
To get lbs/1000 pieces, multiply KG/1000 x 2.2046
|
| |
