Technical Bulletin

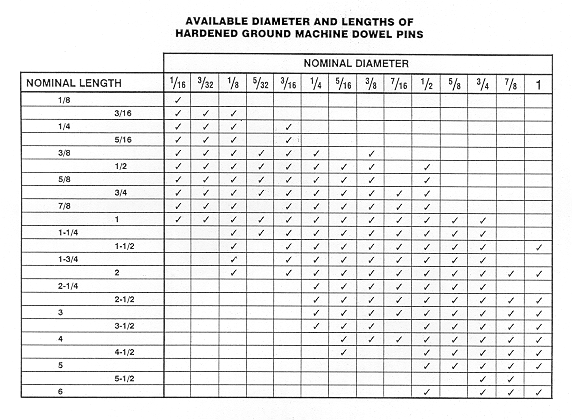

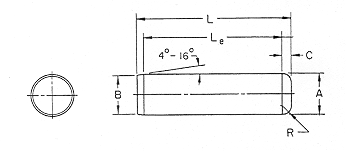

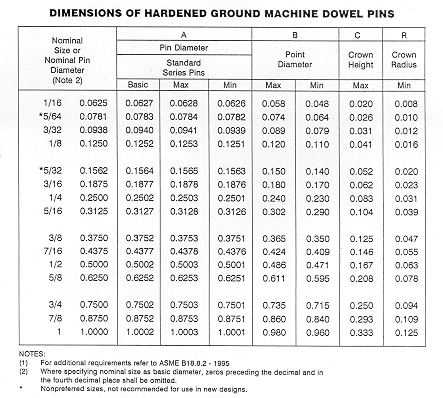

Dowel Pins - Inch Sizes
ASME B18.8.2 - 1995

MATERIAL
Alloy or carbon steel

HARDNESS
Case hardened RHC 60 min.
Core hardness RHC 50-58

SURFACE FINISH
Ground 8 micro in. max.

LENGTH
+/- .010

· Broadest range of Alloy Dowels
· Precision ground diameter
· Blanket order programs
· Fast delivery on Specials

Applications

Commercial · Military · Automotive · Electronic · Medical · Aircraft
